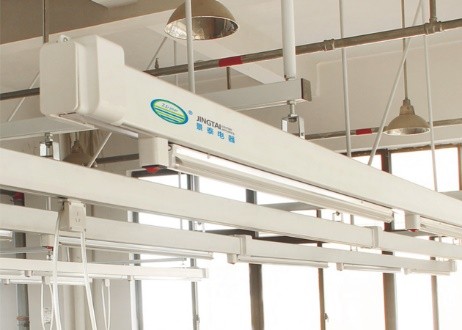

BUS BAR
Product Features:
- Reducing the number of cable trays.
- Decreasing the number of switches.
- Possible to connect loads from the junction boxes.
- Reducing the number of circuit breakers.
- Excludes many accessories used for simplified design of cable system.
- Reducing development time of project.
- Cooling is much better than conventional cable laying and distribution lines.
- It is minimized the risk due to human error during cable laying.
- Ensure the fire security caused by the short circuit of the cable systems.
Product Features:
- Reducing the number of cable trays.
- Decreasing the number of switches.
- Possible to connect loads from the junction boxes.
- Reducing the number of circuit breakers.
- Excludes many accessories used for simplified design of cable system.
- Reducing development time of project.
- Cooling is much better than conventional cable laying and distribution lines.
- It is minimized the risk due to human error during cable laying.
- Ensure the fire security caused by the short circuit of the cable systems.
Busbar Trunking System: Installation, Commissioning & Maintenance Services
Professional Installation Services
1. Site Assessment & Design
- Load analysis & current rating verification
-Route planning for optimal power distribution
- BIM modeling for clash detection
2. Precision Installation
- Horizontal/vertical installation per IEC 61439-6 standards
- Seamless integration with switchgear & transformers
- Earthquake-resistant bracing for high-rise applications
3. Specialized Techniques
- Plug-in unit alignment (tolerance <1mm)
- Torque-controlled bolting (Nm values as per manufacturer specs)
- IP54/IP65 rated installations for harsh environments
Commissioning Protocol
✔ Pre-energization Checks
- Insulation resistance testing (>1MΩ)
- Phase sequence verification
- Momentary power-on test
✔ Performance Validation
- Thermal imaging (max 65°C at full load)
- Vibration analysis (<2.5mm/s RMS)
- Harmonic distortion measurement (<8% THD)
Maintenance Services
Preventive Maintenance • Annual infrared thermography scans
• Connection tightness verification (retorquing schedule)
• Dust/contamination removal using Class H vacuum systems
Corrective Maintenance
• Hot-spot remediation with nano-coated joints
• Damaged segment replacement under 8-hour SLA
• Emergency bypass solutions during repairs
Safety & Compliance
▲ DEWA/PDB approved installation methods
▲ Arc flash hazard mitigation measures
▲ Fall protection systems for elevated busways
Documentation. • As-built drawings with GPS coordinates
• Test reports including:
- Partial discharge test results
- Impedance measurements
- Protection coordination studies
Why Our Service Stands Out
✓ Manufacturer-certified installation teams
✓ Computerized maintenance records
✓ 24/7 fault response with live monitoring options
"Precision-Powered Distribution Solutions for Mission-Critical Facilities"
Typical Project Scope:
- Data centers (2000A+ ratings)
- Industrial plants (up to 6300A)
- High-rise buildings (vertical riser systems)
Available with:
• 5-year performance warranty
• Load monitoring add-ons
• Expansion-ready designs
